The BEC for only two servos needs just one voltage regulator (U2).
The parts U1, C2, C4 und R7 will not be used.

Nr.

Part

Type

Form

3

C1, C7, C8, C18

100n

0603

1

C3

33µ

3528

23

U2

L4941B

DPAK

18

R8

0R

1206

2

C6

100n

0805

6

C5

1µ / 16V

3216

Oberseite

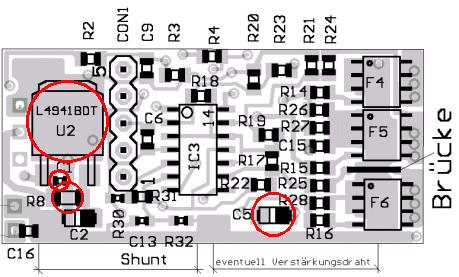

Unterseite
