Connect two wires with P1 and P2. If available use a power supply unit with current limiting (50 or 100mA). If you don’t have one and you are sure that you don’t have not produced any short-circuits, you can also use rechargeable batteries
Between the two pads “REC Gnd” and “REC +5V” your voltmeter should now show 5V.

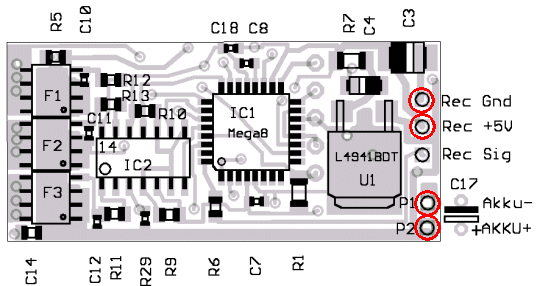

Kontrollmessung BEC
