Remaining parts
Completion
News

Important: Don’t forget R3. Without this resistor you could destroy the Mega8 processor.

Connect the NTC R5 with FET F1 with some high-viscosity glue to get the NTC a chance to detect the FET temperature.

Nr.

Part

Type

Form

19

R5

10k NTC

0805

10

R2

10k

0805

11

R3, R4

2k2

0805

2

C9

100n

0603

12

R6

470R

0805

Oberseite

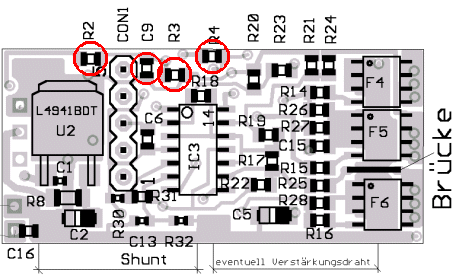

Unterseite
